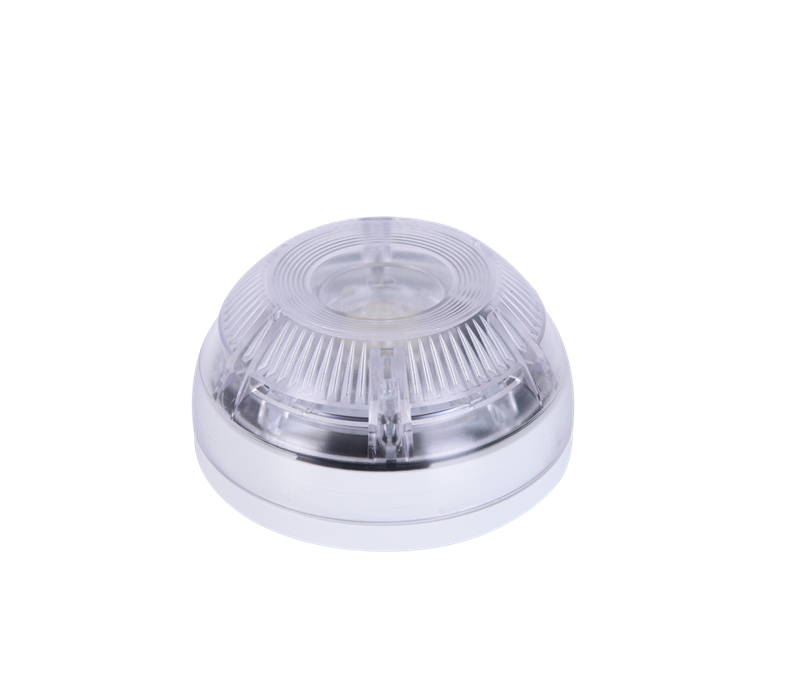

Addressable Sounder With Flasher, White



  • EN54-3 and EN54-23 Certified
  • Fully Addressable feed from Loop Line
  • 42 Different Sound Tone Options
  • 3 Different Sound Level
  • 3 Different Flasher Brightness Mode
  • 3 Different Flasher Speed Mode
  • Piezo with leak-proof sealant
  • White, UL94 non-flammable poly carbonate plastic frame
  • Low Current Consumption ~90 μA (@27VDC)
  • Alarm Consupmtion ~Min.=6.74mA, Nom.=11.06Ma, Max.=15.1mA.(27VDC)
  • 89.4dB / 94.3dB / 97dB±2 dB (@27VDC)

Other Informations

TFS-1192W is an Analogue Addressable Fire Alarm Sounder with Flasher which can be connected directly to Loop Line and completely powered from loop. It can be use with All Teknim Addressable Fire Alarm Control Panels.
