TFS-1193R

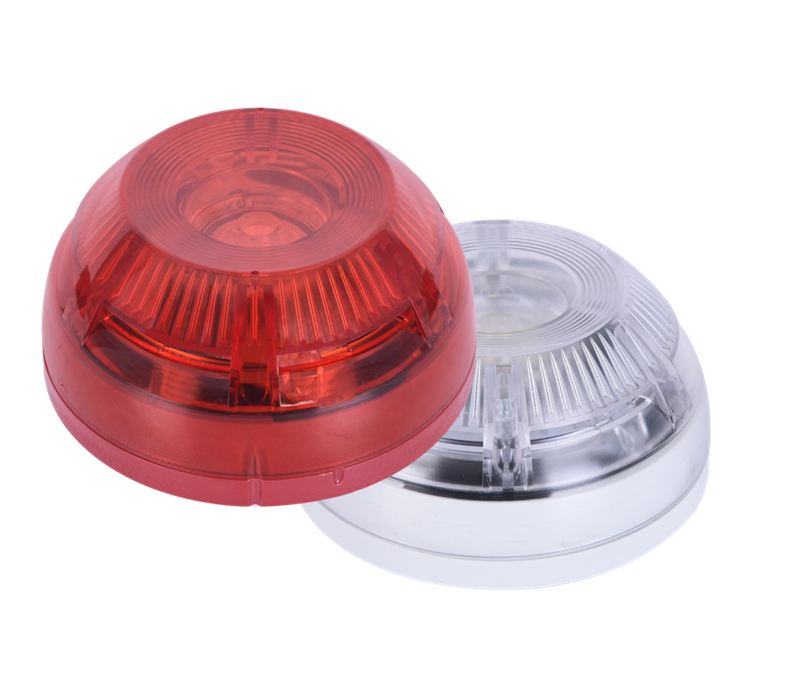

Addressable Flasher, RED

TFS-1193R

GENERAL SPECIFICATIONS


  • EN54-23 Certified
  • Fully Addressable feed from Loop Line
  • 3 Different Flasher Brightness Mode
  • 3 Different Flasher Speed Mode
  • Red, UL94 non-flammable poly carbonate plastic frame
  • Low Current Consumption ~90 μA ( @27VDC )
  • Alarm Consumption ~Min.=4.31mA, Nom.=6.49 mA, Max.= 6.54mA. (27VDC )

Other Informations

TFS-1193R is an Analogue Addressable Fire Alarm Flasher which can be connected directly to Loop Line and completely powered from loop. It can be use with All Teknim Addressable Fire Alarm Control Panels.
